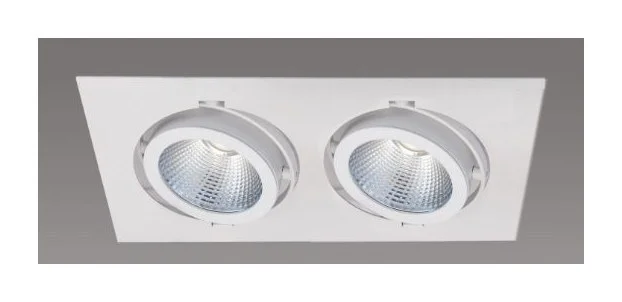

Vela Twin Recessed Square Spot Wide Frame
Vela Twin Recessed Square Spot Wide Frame is a recessed LED spotlight. With a die-cast aluminium housing and an aluminium reflector, it offers IP20 protection, Ra>80 colour rendering and 2700K–6500K and Tunable White colour temperatures. It is used for general and accent lighting in suspended ceilings of offices, shops, hotels and homes and comes with a 3-year warranty.
Technical Details
| Power | 10–42 W |
|---|---|
| Luminous flux | 1.200–5.000 lm |
| Efficacy | 80–123 lm/W |
| Colour temperature (CCT) | 2700K, 3000K, 3500K, 4000K, 5000K, 6500K, Tunable White |
| Colour rendering (CRI) | Ra > 80 |
| IP rating | IP20 |
| Emergency kit | 1 h or 3 h |
| Warranty | 3 years |
| Mounting | Recessed |
| Housing | Die-cast aluminium body with integrated heat sink |
| Input voltage | 220–240 V AC |
| Dimensions | 290 × 160 × 124 mm |
| Cut-out | Ø 140 × 255 mm mm |
| Product code | 20 01 IC AS 015 |
Values are taken from the product datasheet; options vary by project.
Frequently asked questions about Vela Twin Recessed Square Spot Wide Frame
What is the IP rating of Vela Twin Recessed Square Spot Wide Frame?
Vela Twin Recessed Square Spot Wide Frame is rated IP20; it is suitable for dry indoor areas and has no protection against water.
Which colour temperatures are available for Vela Twin Recessed Square Spot Wide Frame?
2700K, 3000K, 3500K, 4000K, 5000K, 6500K and Tunable White options are available; the colour temperature is chosen per project when ordering.
Can Vela Twin Recessed Square Spot Wide Frame be supplied with an emergency kit?
Yes. An emergency kit providing 1 or 3 hours of operation can be integrated; during a power failure the luminaire keeps running on battery.
What are the warranty and LED lifetime of Vela Twin Recessed Square Spot Wide Frame?
Vela Twin Recessed Square Spot Wide Frame has a 3-year warranty.
