Corda Rope Track and Accessories
Corda Rope Track and Accessories is the rope and mounting accessories of the 48 V rope track lighting system. A flexible 27 mm wide rope supplied in 20 m rolls; with junction boxes, tensioners, holders, end caps and a 150 W driver it forms free runs from ceiling to wall. With flexible rope with built-in 48 V conductors, black accessories, it offers IP20 protection. It is used to build free-form rope lighting layouts from ceiling to wall or wall to wall in restaurants, cafés, hotel lobbies, shops and homes; it comes with a 3-year warranty.
Technical Details
| IP rating | IP20 |
|---|---|
| Warranty | 3 years |
| Mounting | Rope track (48 V) |
| Housing | Flexible rope with built-in 48 V conductors, black accessories |
| Input voltage | 48 V DC (rope track driver) |
| Dimensions | 27 × 1.7 mm |
| Product code | 20 01 IC HR 009 |
Values are taken from the product datasheet; options vary by project.
System components
The rope and accessories are ordered separately; the part code is shown under each component.

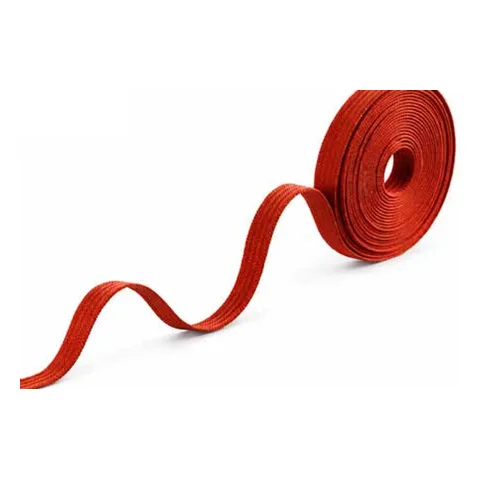

20 01 IC HR 009-01Rope track, 20 m roll27 × 1.7 mm section · terracotta red

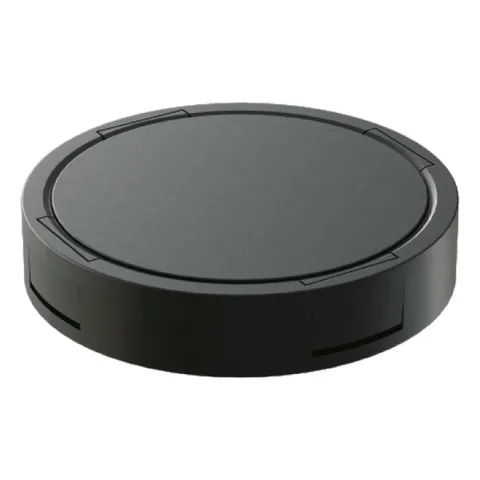

20 01 IC HR 009-02Driver box and rope distributorØ115 × 25 mm

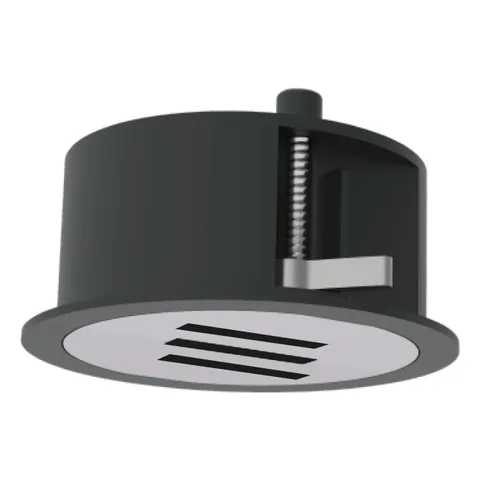

20 01 IC HR 009-03Recessed junction boxØ115 mm flange · Ø104 mm body

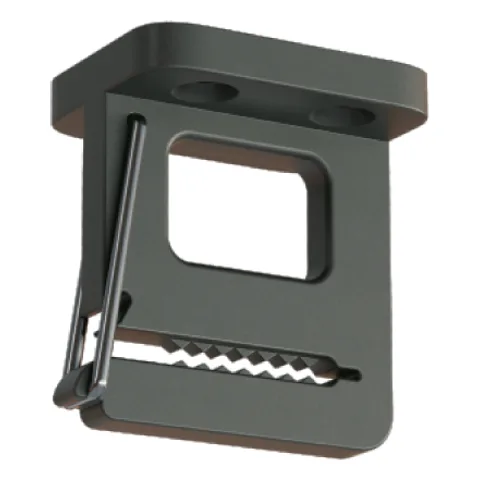

20 01 IC HR 009-04Surface-mounted rope holder45 × 55 mm

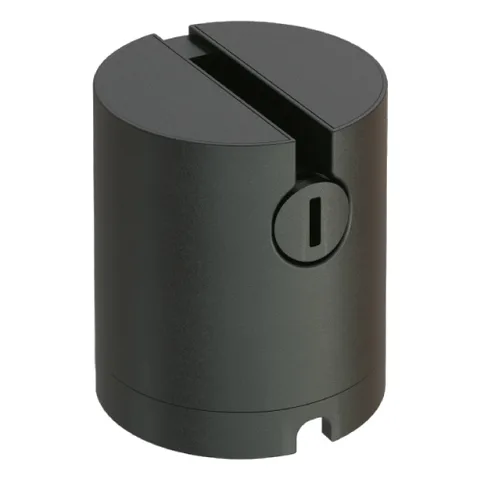

20 01 IC HR 009-05Short tensioner (surface-mounted)Ø50 × 60 mm

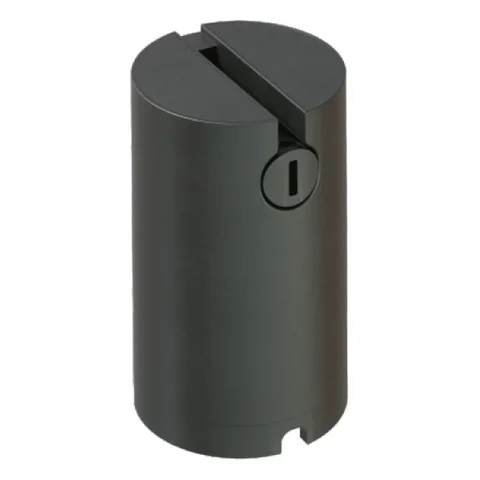

20 01 IC HR 009-06Long tensioner (surface-mounted)Ø50 × 90 mm

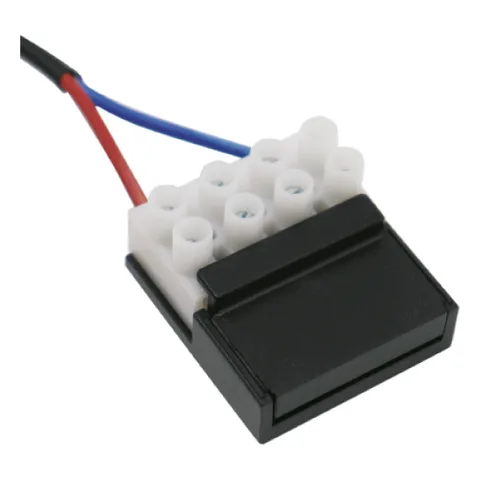

20 01 IC HR 009-07External driver feed connector36 × 32.6 × 10.2 mm

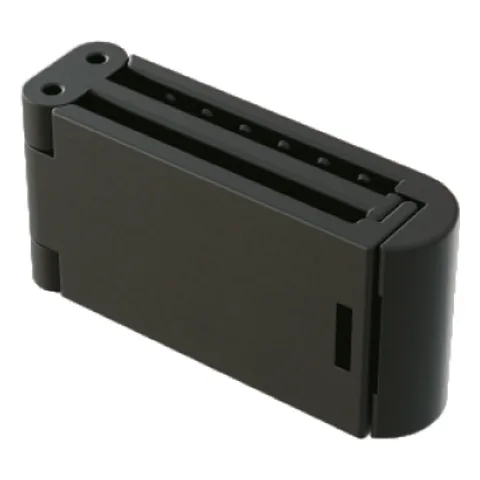

20 01 IC HR 009-08End cap41 × 21 × 11 mm

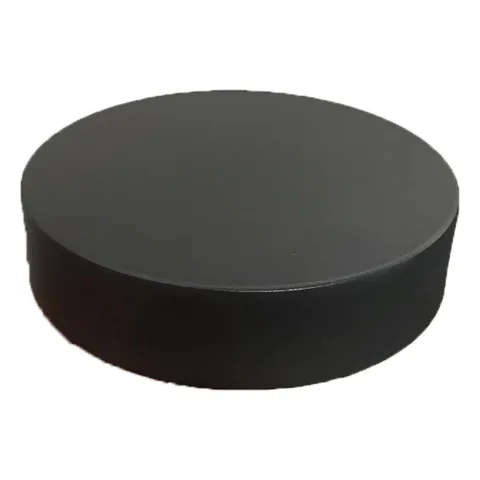

20 01 IC HR 009-09LED driver 150 W, 48 V DCØ83 × 25 mm
Frequently asked questions about Corda Rope Track and Accessories
What is the IP rating of Corda Rope Track and Accessories?
Corda Rope Track and Accessories is rated IP20; it is suitable for dry indoor areas and has no protection against water.
What is the warranty period of Corda Rope Track and Accessories?
Corda Rope Track and Accessories has a 3-year warranty.
