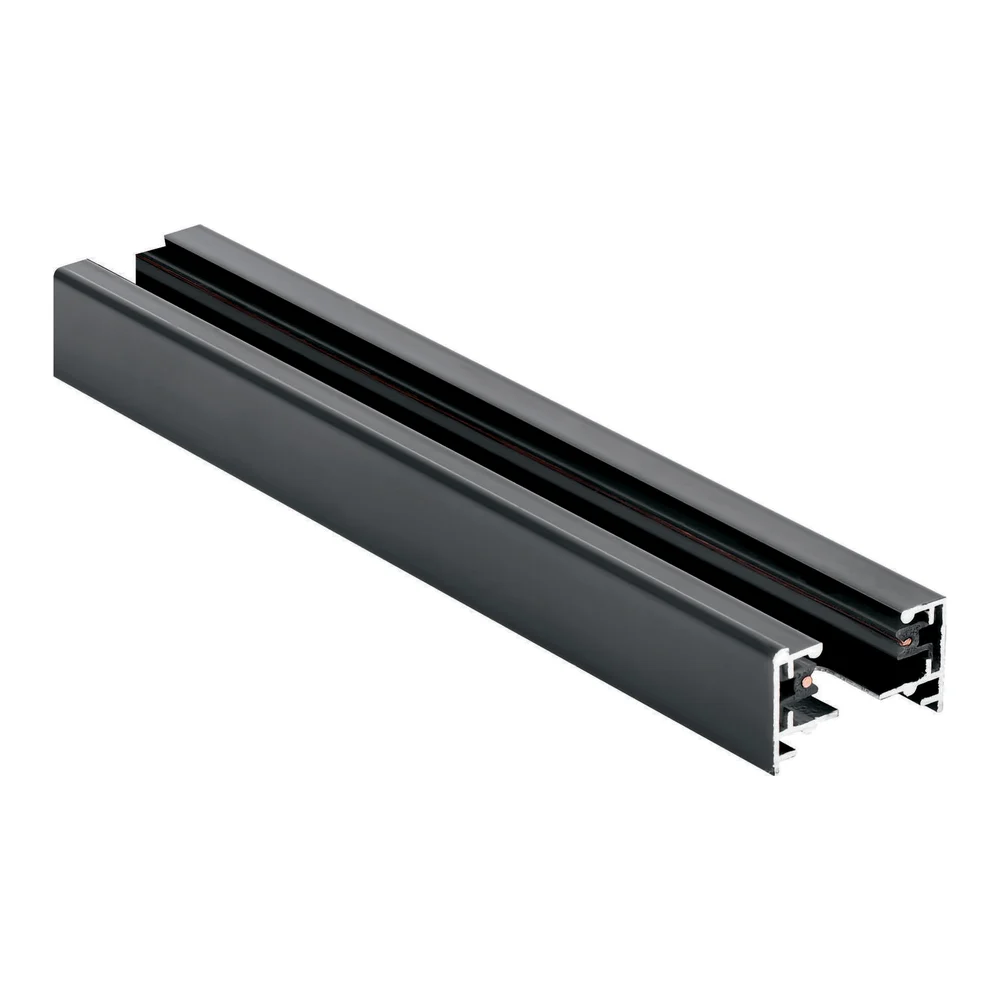

Single-Phase Track
Single-Phase Track is a track for the single-phase (one-circuit) track system. Its aluminium body carries a single-circuit copper conductor; track spotlights clip on anywhere along the run. 34.2 × 21 mm · 2915 mm; 3-year warranty.
Technical Details
| Body | Extruded aluminium |
|---|---|
| Finish | Electrostatic powder coating |
| Colour | Black |
| Conductors | Copper, 1.6 mm |
| Insulation | Extruded PVC |
| Circuits | 1 circuit |
| Dimensions (W × H × L) | 34.2 × 21 × 2915 mm |
| Weight | 1.187 kg |
| Earthing | Yes (plate) |
| Pack quantity | 20 pcs |
| Conductor spacing | 20.5 mm |
| Warranty | 3 years |
| Product code | 20 01 IC RA 001 |
Single-Phase Track and Accessories: other system components
Track and accessories are ordered separately; all parts are shown on one page in the system brochure.
20 01 IC RA 002Single-Phase Power Feed
20 01 IC RA 003Single-Phase End Cap
20 01 IC RA 004Single-Phase Straight Connector
20 01 IC RA 005Single-Phase L Connector
20 01 IC RA 006Single-Phase T Connector
20 01 IC RA 007Single-Phase X Connector
20 01 IC RA 008Single-Phase Flexible Connector
20 01 IC RA 009Single-Phase Track Adapter
20 01 IC RA 010Single-Phase Compact Track Adapter
20 01 IC RA 011Single-Phase Driver Adapter
20 01 IC RA 012Adjustable Suspension Wire
20 01 IC RA 013Single-Phase Suspension Bracket
Frequently asked questions about Single-Phase Track
Which track system is Single-Phase Track used with?
Single-Phase Track is part of the Single-Phase Track and Accessories range. Track, connectors and adapters from different systems are not interchangeable.
What are the dimensions of Single-Phase Track?
34.2 × 21 mm · 2915 mm. Full values are listed in the technical table above and in the system brochure.
How is Single-Phase Track ordered?
With product code 20 01 IC RA 001. Track lengths and accessories are ordered piece by piece; send us your layout and we prepare the parts list and quotation.
