Single-Phase Track and Accessories
Single-phase track is an aluminium track system fed from one circuit. With its slim 34.2 × 21 mm body it suits accent lighting switched as one group in shops, showrooms, galleries, offices and homes. Power feed, end cap, straight, L, T, X and flexible connectors, standard, compact and driver track adapters, a suspension bracket and adjustable suspension wire complete the system.
Products
Single-Phase Suspension Bracket
- 32 × 42 × 22 mm
Adjustable Suspension Wire
- Ø1.2 mm · 1.5 m (1–3 m)

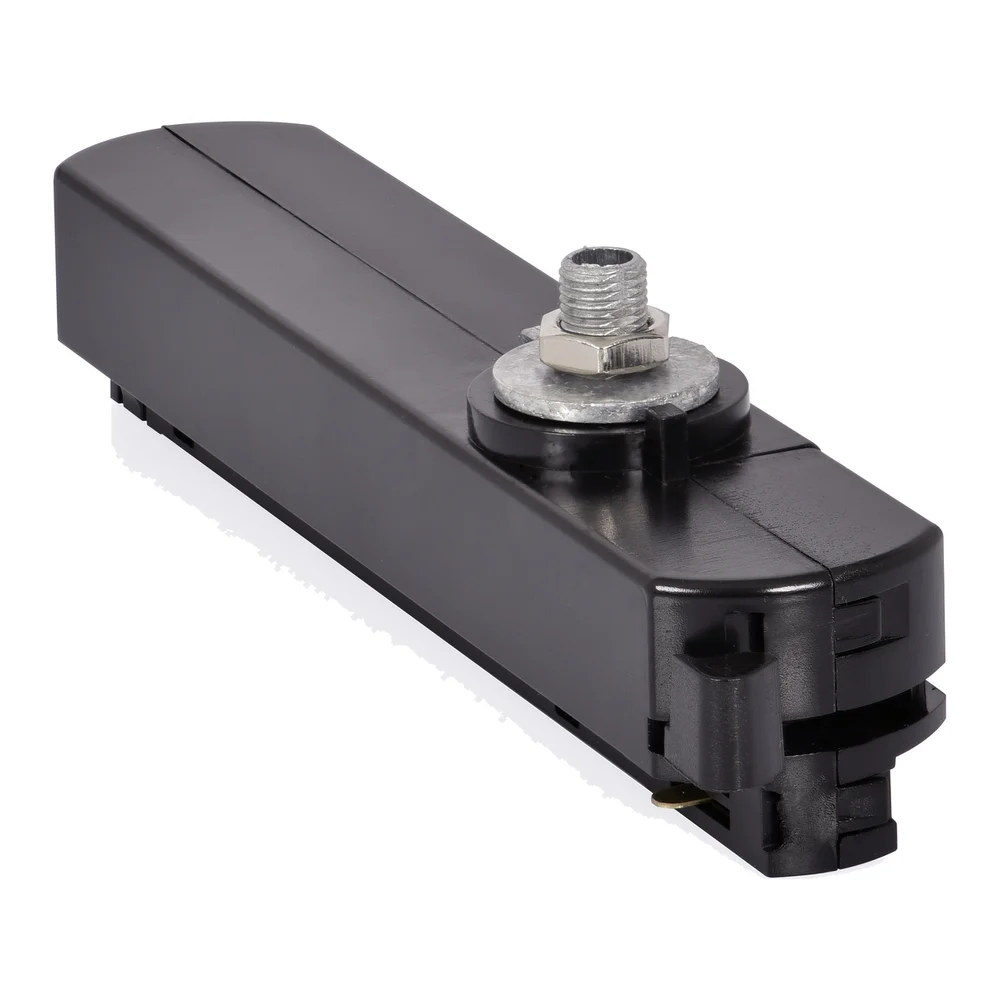

Single-Phase Driver Adapter
- 34 × 184 × 41 mm · 30 W, 700 mA

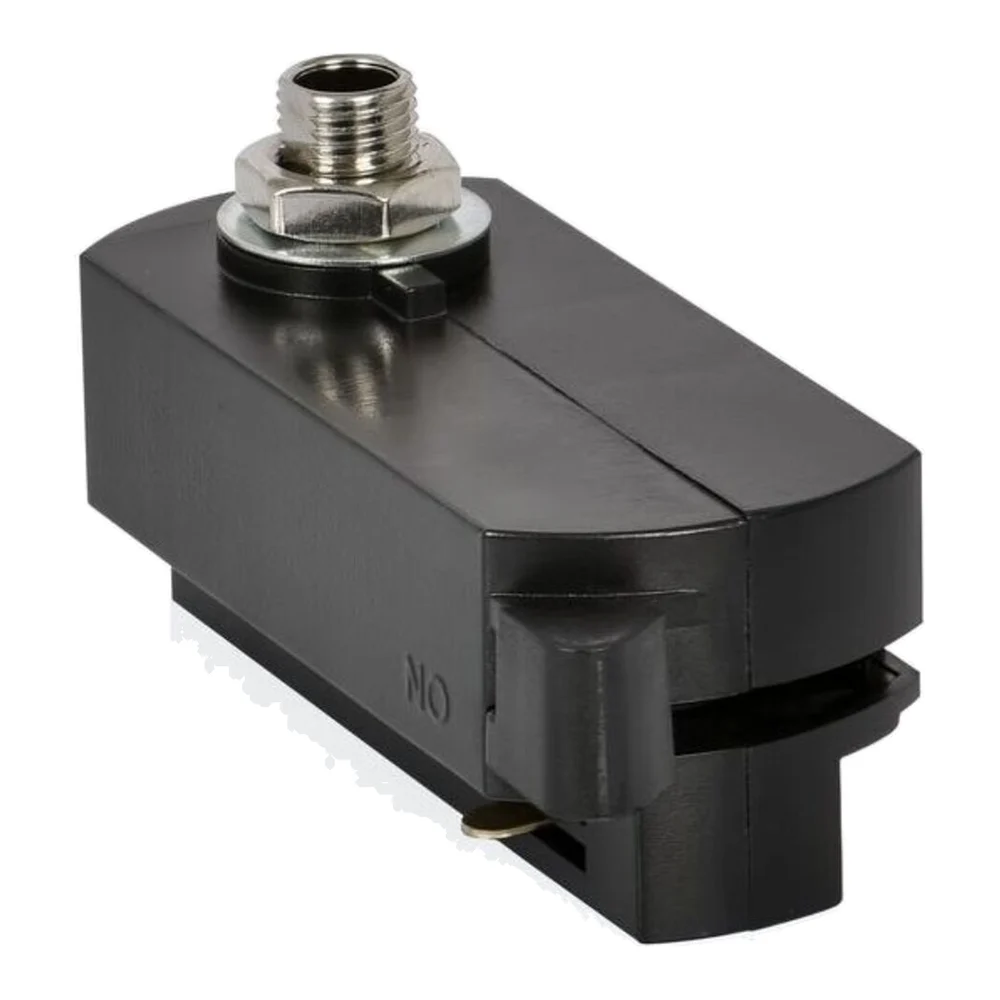

Single-Phase Compact Track Adapter
- 32 × 82 × 36 mm · 20 mm above track

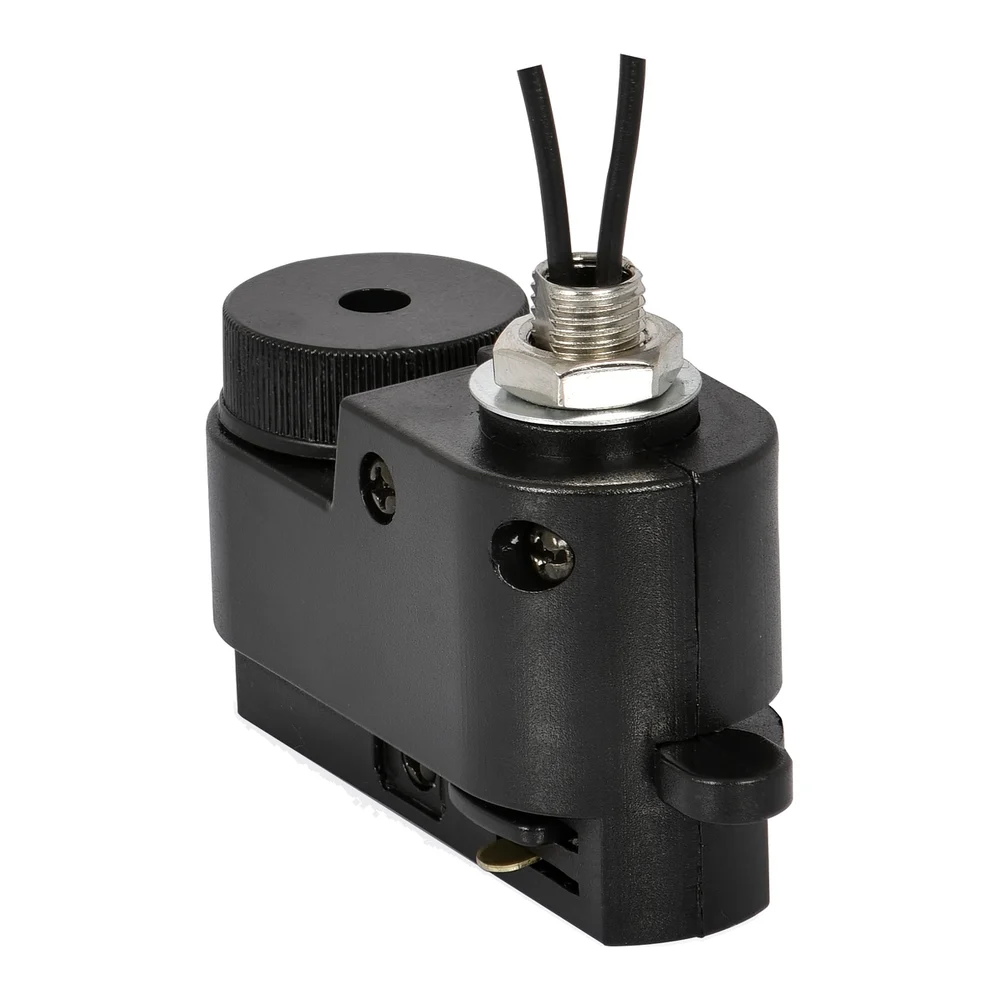

Single-Phase Track Adapter
- 28.5 × 65 × 42.2 mm · 12 mm nipple

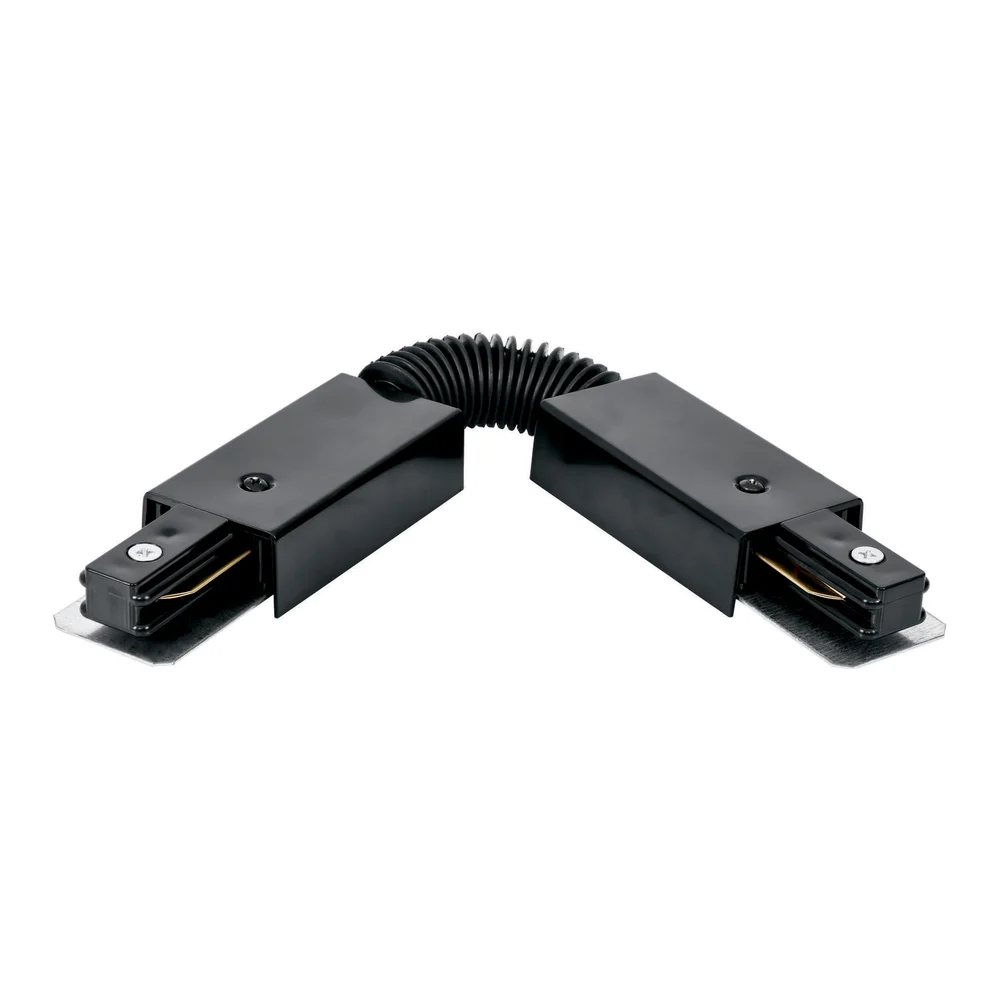

Single-Phase Flexible Connector
- 35 × 270 × 21 mm

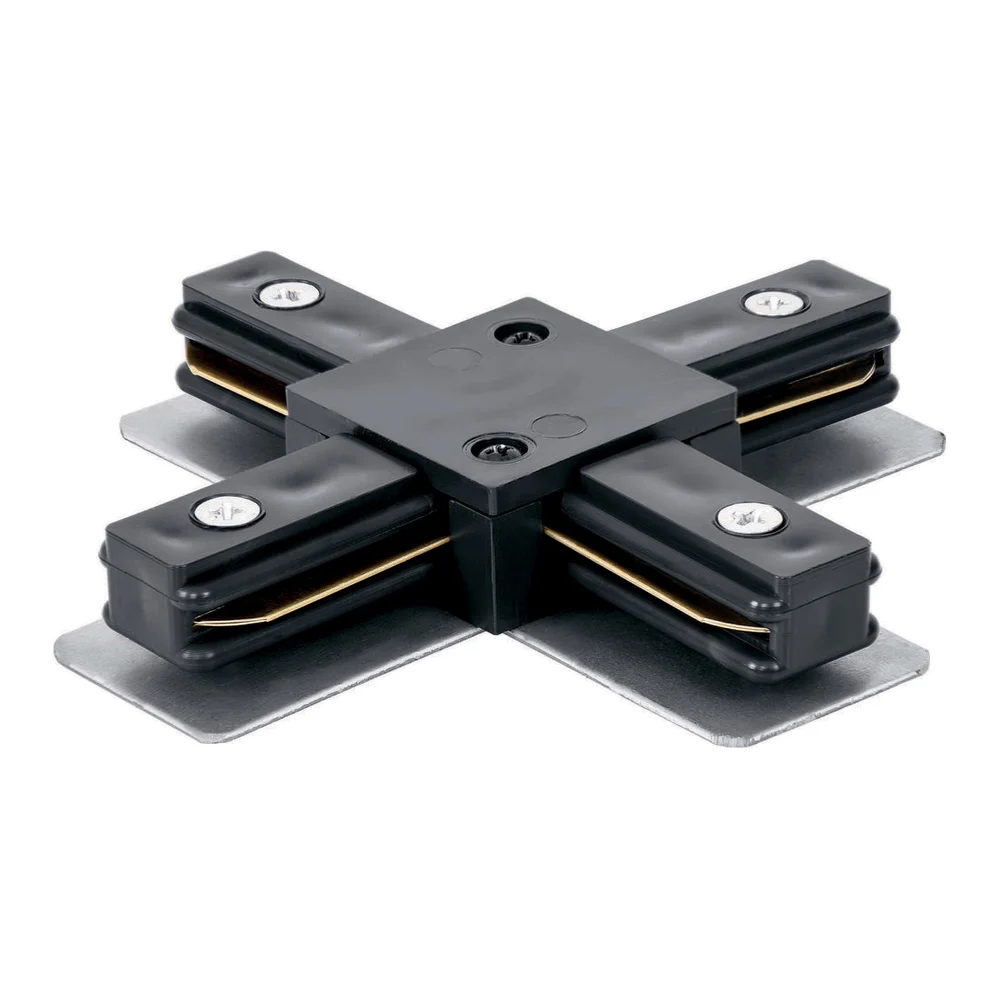

Single-Phase X Connector
- 106 × 106 × 21 mm

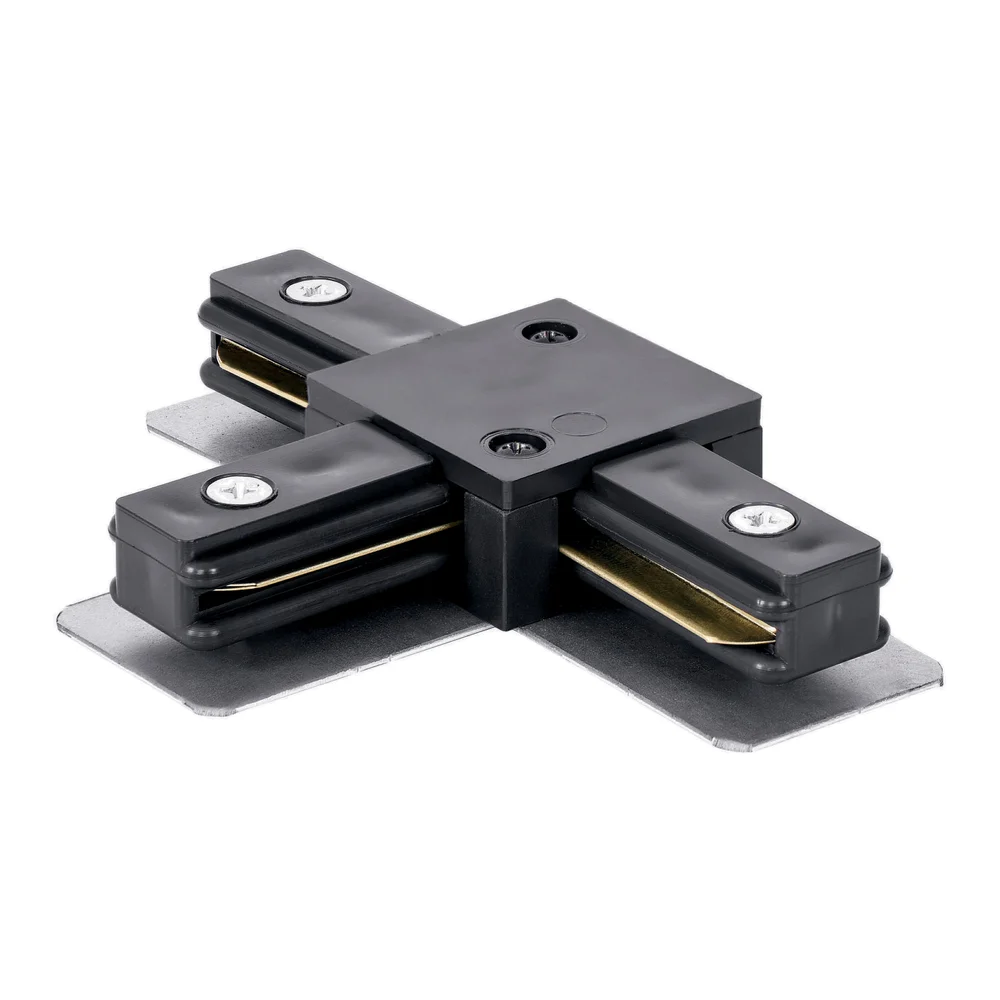

Single-Phase T Connector
- 70 × 106 × 21 mm

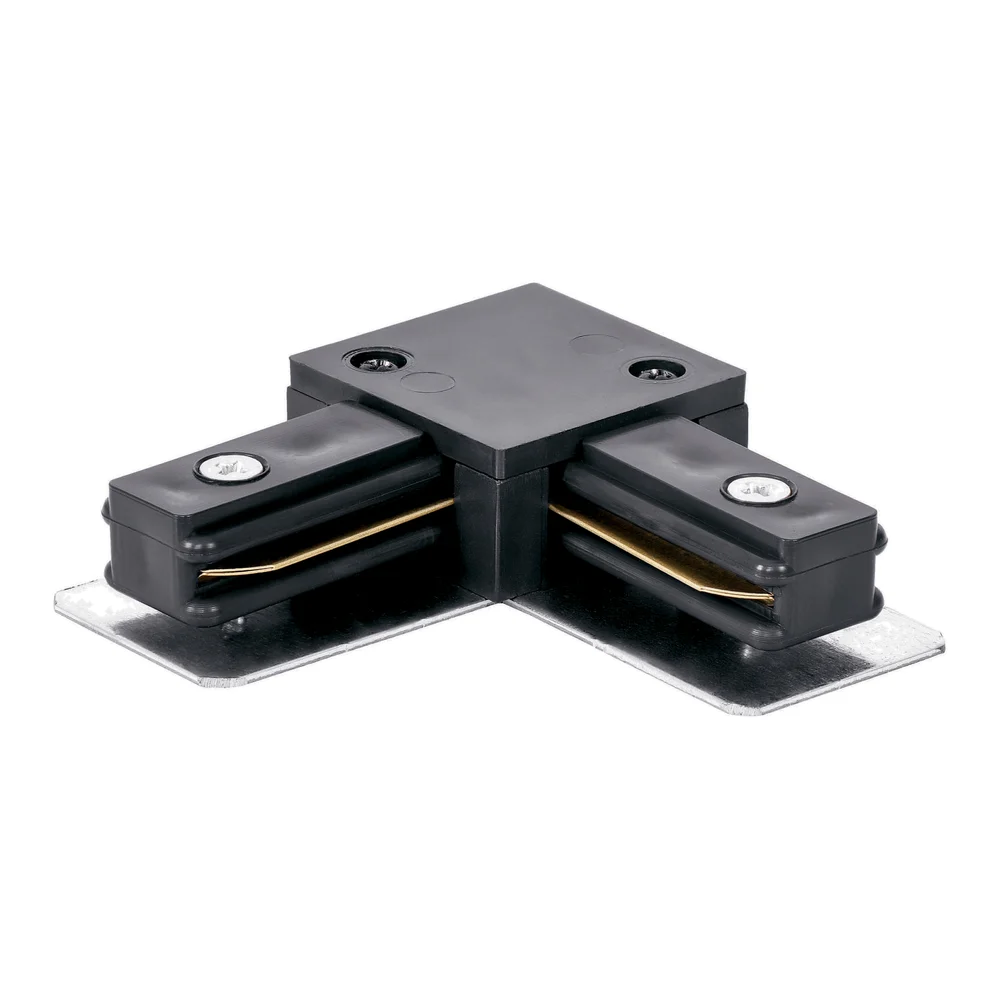

Single-Phase L Connector
- 71 × 71 × 21 mm

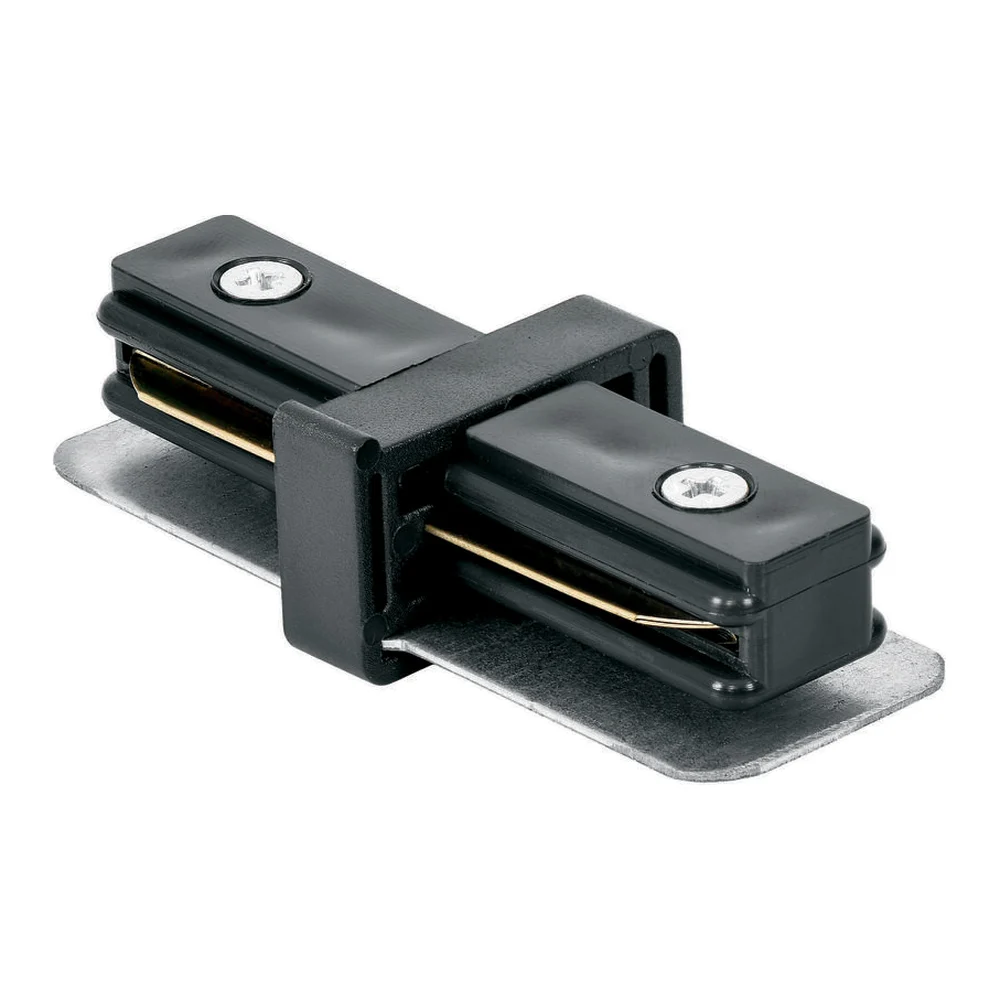

Single-Phase Straight Connector
- 76 × 31 × 21 mm

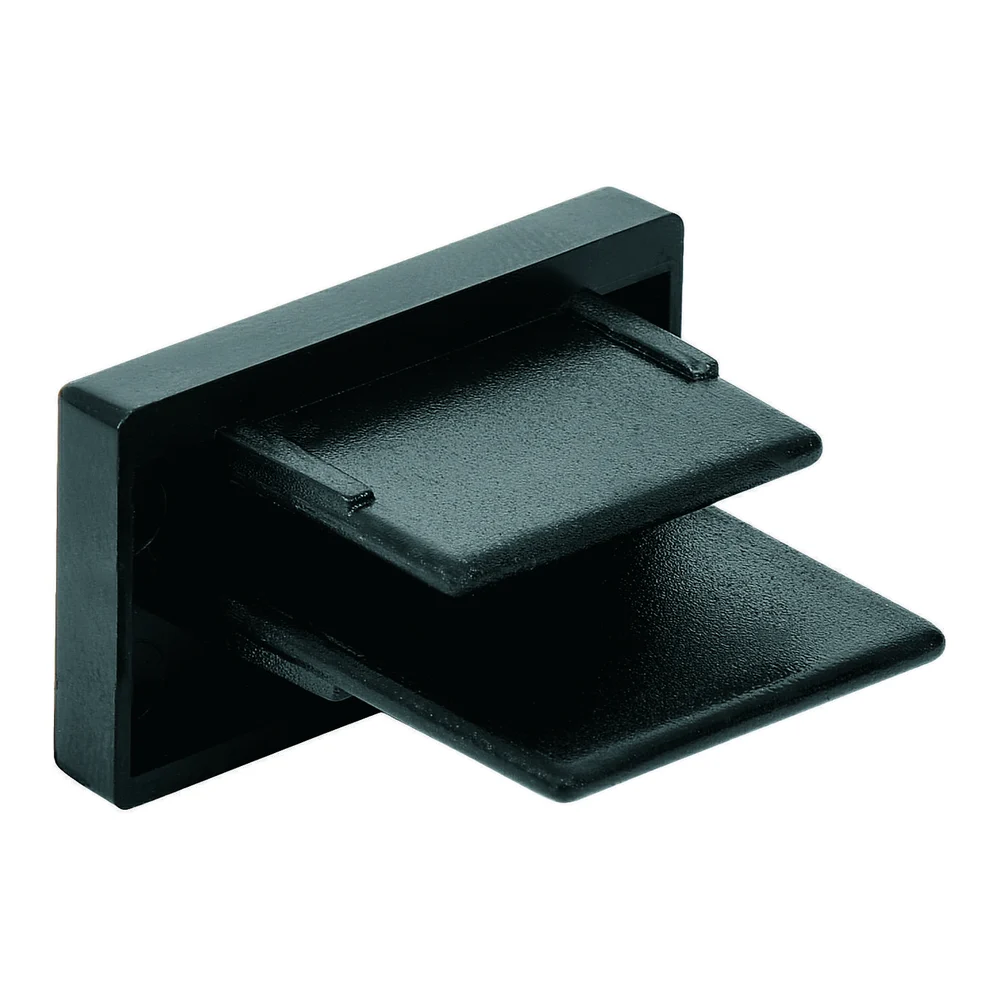

Single-Phase End Cap
- 35 × 21 mm

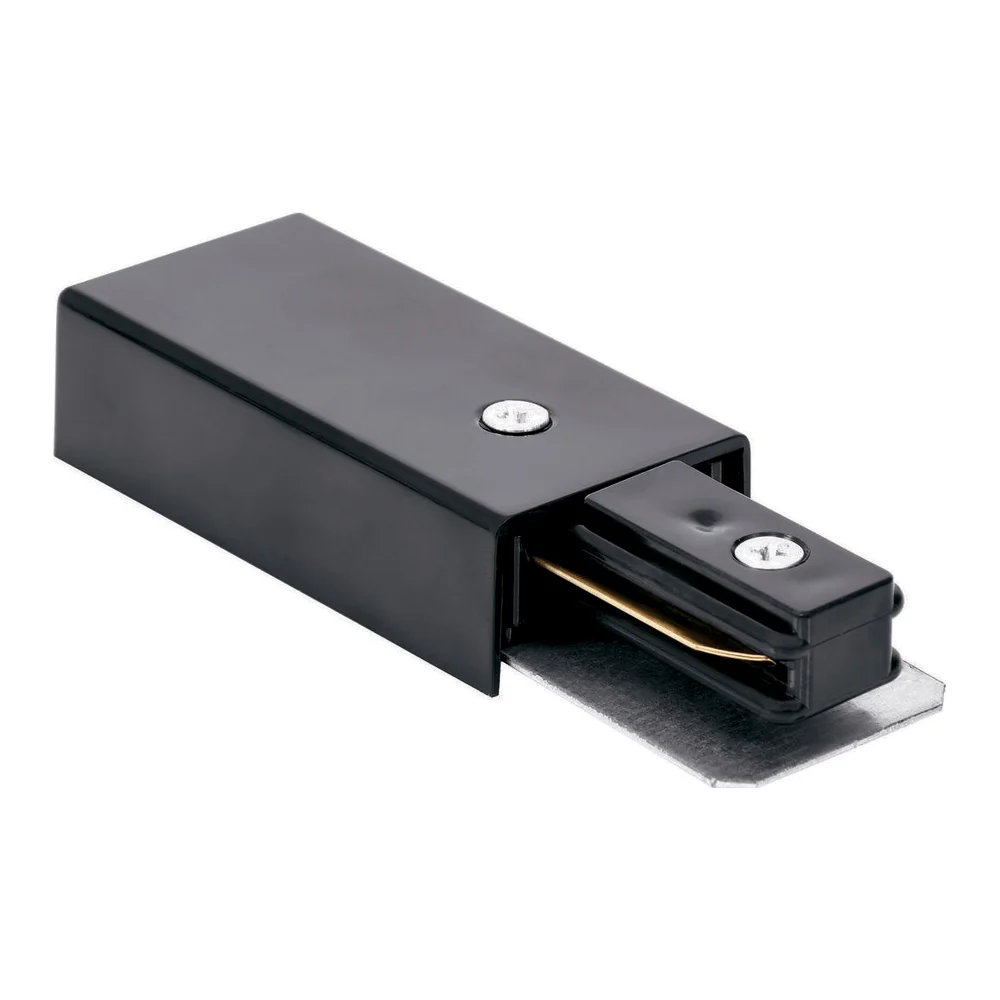

Single-Phase Power Feed
- 35 × 108 × 20 mm
Single-Phase Track
- 34.2 × 21 mm · 2915 mm
Related guides
- What Is a Track Spotlight and How to Choose One? Beam Angle, Track Type and Wattage
A track spotlight is an LED spotlight that can be slid along and aimed on an electrical track mounted on the ceiling. Four decisions are key: an adaptor compatible with the track (single- or three-phase), a beam angle suited to the task (12°–20° for a single product, 34° for shelves, 44°–60° for areas), enough power and luminous flux for the space, and CRI 90 or higher so that colours look right.
- How to Light a Shop? Lighting Decisions That Affect Sales
Retail lighting is built in three layers: uniform general lighting of about 300 lux in the sales area, accent lighting that makes products 3–5 times brighter than their surroundings, and window lighting. To show product colours accurately, CRI 90 or higher is chosen, plus R9 > 50 for products with red tones.
- What Is Accent Lighting and How Is It Applied in Spaces?
Accent lighting is the lighting layer that makes an object, artwork or architectural detail stand out by lighting it at least 3 times more brightly than its surroundings. It is usually applied with narrow-beam track spotlights, adjustable recessed spotlights and wallwashers, aimed at the object at an angle of 30°–35°.
Frequently Asked Questions
When is single-phase track chosen?
Where all spotlights on the track switch together and no separate circuits are needed: small shops, homes, offices and meeting rooms. For zone-by-zone control, choose three-phase track.
What is the driver adapter for?
It connects driverless LED luminaires directly to single-phase track; a 30 W, 700 mA driver is built into the adapter and other currents are available on request.
